Soya Nuggets Machine GNEW 250

  • Main Motor : 60 HP AC motor
  • Hopper Mixture : 1 HP AC Motor with gear box
  • Hopper Mixture : 1 HP AC Motor with gear box
  • Cutter : 1 HP AC Drive
  • Capacity : 250 kg/ Hr.
  • Machine Size : ( LxWxH)- 60”x60”x60”
  • Approx. Weight : 2200 kg

SS Energy Food Sattu Extruder GNEW 2000

  • Main Motor : 240 HP AC motor
  • Hopper Feeder : 5 HP AC Drive
  • Cutter : 2 HP AC Drive
  • Capacity : 2000 kg/ Hr.
  • Machine Size : ( LxWxH)- 12’x3.5’x6’
  • Approx. Weight : 3500 kg

Kurkure Extruder Machine GNEW 80

  • Main Motor : 20 HP AC motor
  • 5 HP AC Drive with gear Head
  • Capacity : 80 kg/ Hr.
  • Machine Size : ( LxWxH)- 6’x 2.5’x5.5’
  • Approx. Weight : 15 v00 kg

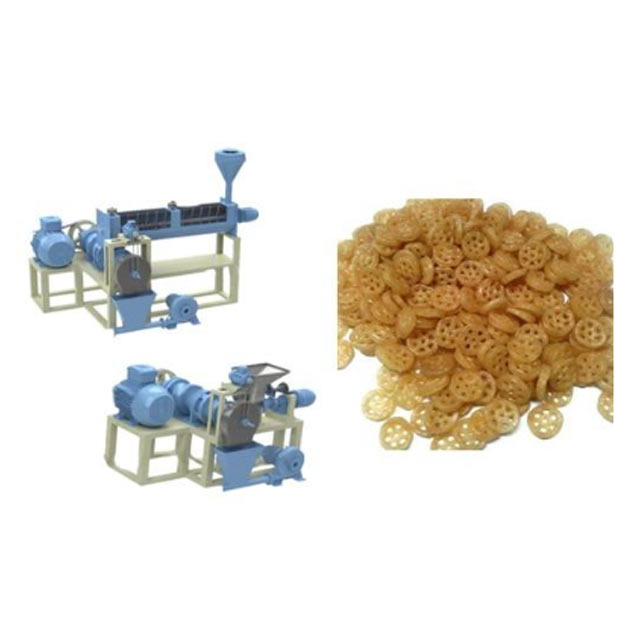

Frams Machine GNEW 100

  • Main Motor : 30 HP AC motor Extruder Gear Head
  • Hopper Mixture : 1 HP AC Motor with gear box
  • Cutter : 2 HP AC Drive
  • Capacity : 100 kg/ Hr.
  • Machine Size : ( LxWxH)- 13’x2.5’x5’
  • Approx. Weight : 2000 kg

Corn Flacks Machine GNEW 100

  • Main Motor : 5 HP AC motor with Helical gear head
  • Hopper Feeder : 1 HP AC Drive
  • Chilled Rolla Size : 14’ X 30’ (Water Cooling System)
  • Capacity : 100 kg/ Hr.
  • Machine Size : ( LxWxH)- 54”x40”’x60”
  • Weight : 2000 kg

Gold Finger Extruder Machine GNEW 150

  • Main Motor : 25 HP AC motor
  • Belt conveyor 16 fit with 1 HP AC motor and gear head
  • Cutter – 1 HP AC Drive
  • Capacity : 150 kg/ Hr.
  • Machine Size : ( LxWxH)- 20’x 4’x7’
  • Approx. Weight : 1500 kg

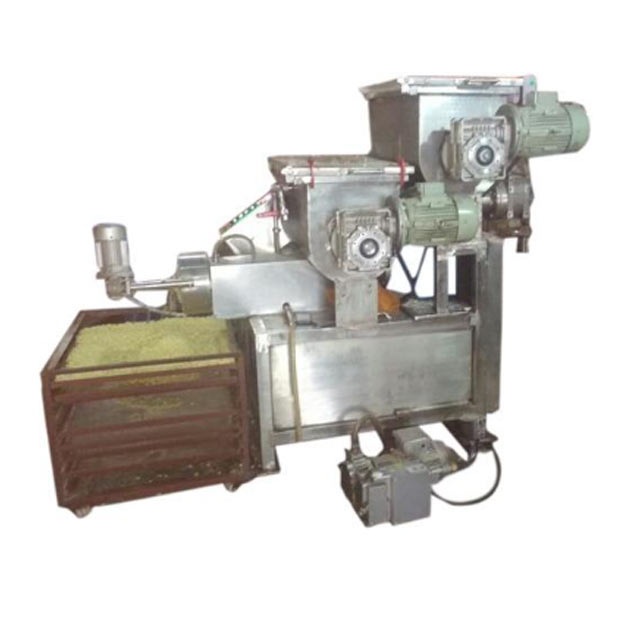

SS 304 Pasta Machine GNEW 200

  • Main Motor : 25 HP AC motor with Extruder gear head
  • Pre Mixture : 2 HP AC Motor with gear box
  • Hopper Mixture : 2 HP AC Motor with gear box
  • Cutter : 1 HP AC Drive with 2 HP vacuum Pump
  • Capacity : 200 kg/ Hr.
  • Machine Size : ( LxWxH)- 6’x 4’x6’
  • Approx. Weight : 1500 kg

Fish Feed Extruder Machine GNEW 500

  • Main Motor : 100 HP AC motor
  • Hopper Mixture : 2 HP AC Motor with gear box
  • Pre Conditioner Mixture- 5 HP AC Motor
  • Cutter : 2 HP AC Drive
  • Capacity : 500 kg/ Hr.
  • Machine Size : ( LxWxH)- 10’x 4’x8’
  • Approx. Weight : 2500 kg

Papad Dryer 5 Story Electric. GNEW 40

  • Main Drive : 5 HP AC Motor with Gear Box with AC Drive
  • Belt : 5 nos
  • Total Load : 20 kw
  • Capacity : 40-100 kg/ Hr
  • Machine Size : ( LxWxH)- 20’x3’x8’
  • Approx. Weight : 1500 kg

Fish Feed Pellet Machine GNEW 400

  • Main Motor : 75 HP AC motor
  • Hopper Mixture : 1 HP AC Motor with gear box
  • Cutter : 2 HP AC Drive
  • Capacity : 400 kg/ Hr.
  • Machine Size : ( LxWxH)- 6’x 6’x7’
  • Approx. Weight : 2200 kg

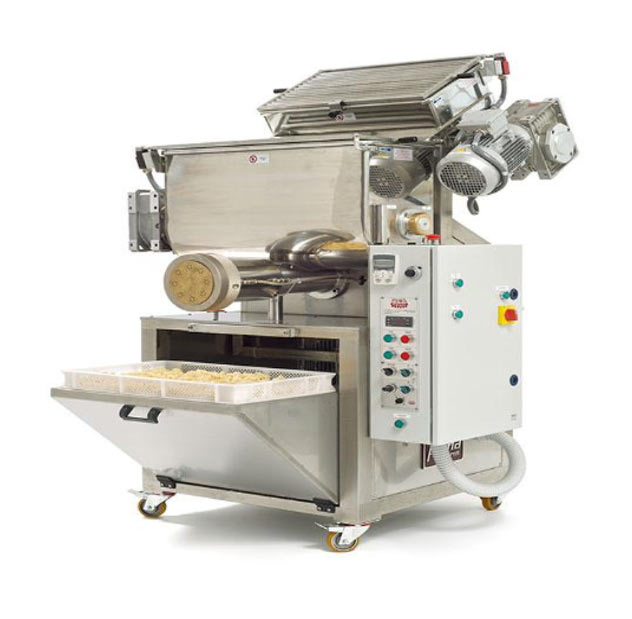

SS 304 Pasta Machine GNEW 50

  • Main Motor : 7.5 HP AC motor with Extruder gear head
  • Pre Mixture : 1 HP AC Motor with gear box
  • Hopper Mixture : 1 HP AC Motor with gear box
  • Cutter : 1 HP AC Drive with 1 HP vacuum Pump
  • Capacity : 50 kg/ Hr.
  • Machine Size : ( LxWxH)- 4’x 3’x5’
  • Approx. Weight : 700 kg

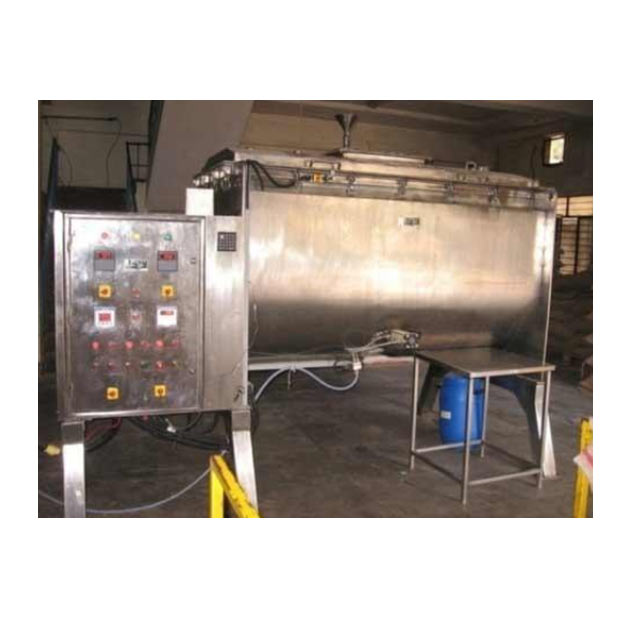

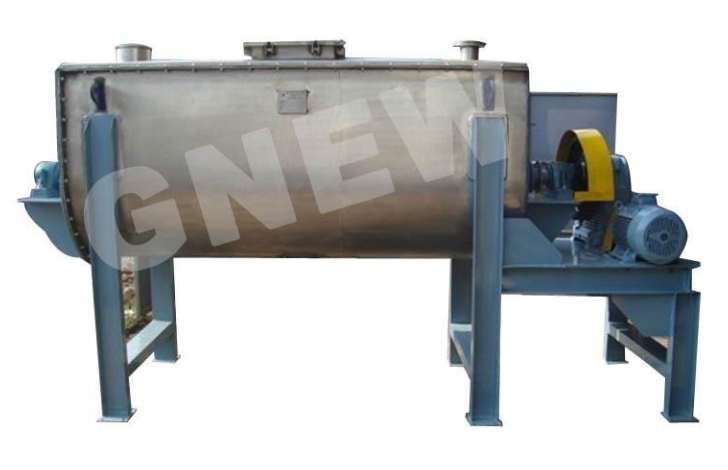

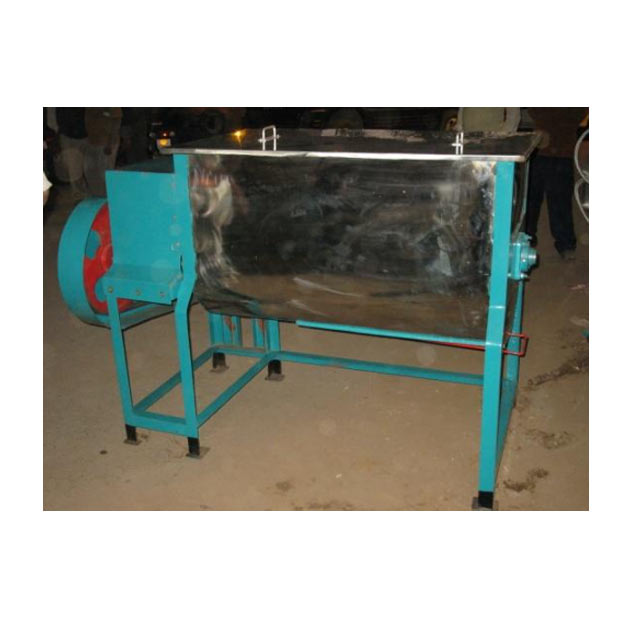

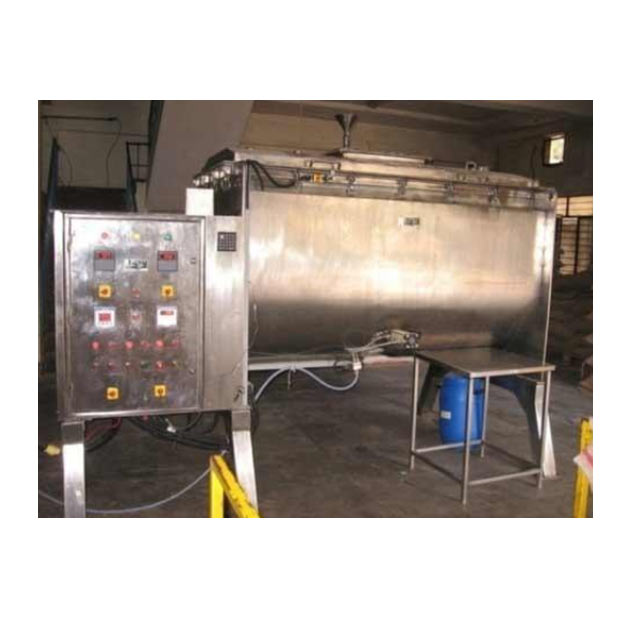

Ribbon Blinder Mixture GNEW 100

  • Main Motor : 10 HP AC motor with gear box
  • Capacity : 500 kg/ Batch .
  • Machine Size : ( LxWxH)- 9’x 5’x6’
  • Approx. Weight : 1000 kg

Fish Feed 300 kg

  • Main Motor : 75 HP AC motor
  • Hopper Mixture : 2 HP AC Motor with gear box
  • Hopper Mixture : 2 HP AC Motor with gear box
  • Cutter : 1 HP AC Drive
  • Capacity : 300 kg/ Hr.
  • Machine Size : ( LxWxH)- 60”x60”x60”
  • Approx. Weight : 2500 kg

Full Fat Soya Extruder 800 kg

  • Main Motor : 100 HP AC motor
  • Hopper Mixture : 2 HP AC Motor with gear box
  • Hopper Mixture : 2 HP AC Motor with gear box
  • Cutter : 1 HP AC Drive
  • Capacity : 800 kg/ Hr.
  • Machine Size : ( LxWxH)- 60”x60”x60”
  • Approx. Weight : 2700 kg

Corn Flacks Machine GNEW 200

  • Main Motor : 7.5 HP AC motor with Helical gear head
  • Hopper Feeder : 1 HP AC Drive
  • Chilled Rolla Size : 16’ X 36’ (Water Cooling System)
  • Capacity : 200 kg/ Hr.
  • Machine Size : ( LxWxH)- 60”x42’’x60”
  • Weight : 2500 kg

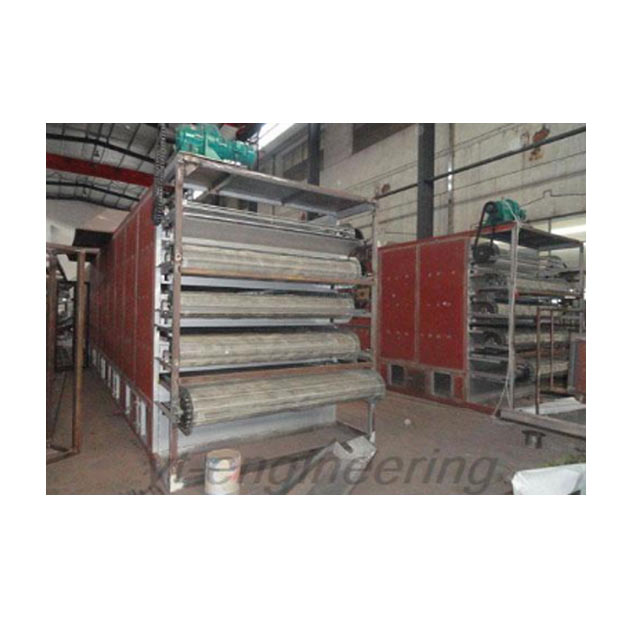

Dryer 5 Story Electric. GNEW 400

  • Main Drive : 5 HP AC Motor
  • Belt : 5 nos
  • Total Load : 40 kw
  • Capacity : 400 kg/ Hr.
  • Machine Size : ( LxWxH)- 20’x5’x8’
  • Approx. Weight : 3500 kg

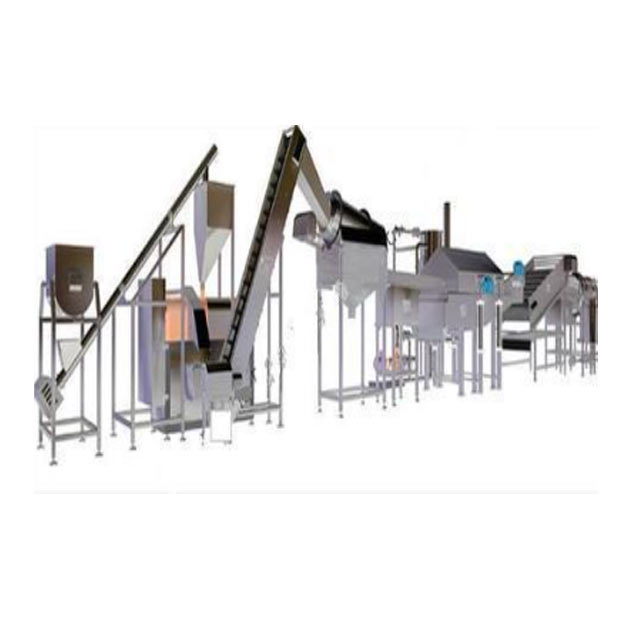

Kurkure on Line Plant GNEW 300

  • Mixture – 2 HP AC Motor
  • SS Screw Conveyor- 1 HP AC motor
  • Rotery Extruder- 15 HP Ac Motor and 5 HP AC Drive
  • Lift Conveyor -1 HP AC motor
  • Real Machine
  • Continuous Fryer diesel fire
  • Lift Conveyor -1 HP AC motor
  • Continuous Coating drum – with 1 HP DC Motor and 1 hp Spice liquid celery spry Pump
  • Capacity : 100-300 kg/ Hr.
  • Machine Size : ( LxWxH)- 30’x 6’x7’
  • Approx. Weight : 4500 kg

Sawaiya Bambino Machine GNEW 50

  • Main Motor : 7.5 HP AC motor Gear
  • Hopper Mixture : 1 HP AC Motor with gear box
  • Cutter : 1 HP AC Drive
  • Capacity : 50 kg/ Hr.
  • Machine Size : ( LxWxH)- 5’x2.5’x4.5’
  • Approx. Weight : 700 kg

AIR BLOWER

  • Main Drive – 3 HP AC Motor

AATA DOUGH MIXTURE GNEW 30

  • Main Motor : 2 HP AC motor with gear box
  • Capacity : 30 kg/ Batch
  • Machine Size : ( LxWxH)- 4’x2’x4
  • Weight : 200 kg

Belt Sealing Machine

  • Main Motor : 1/2 HP AC motor with gear box
  • Electric Load : 2 KW

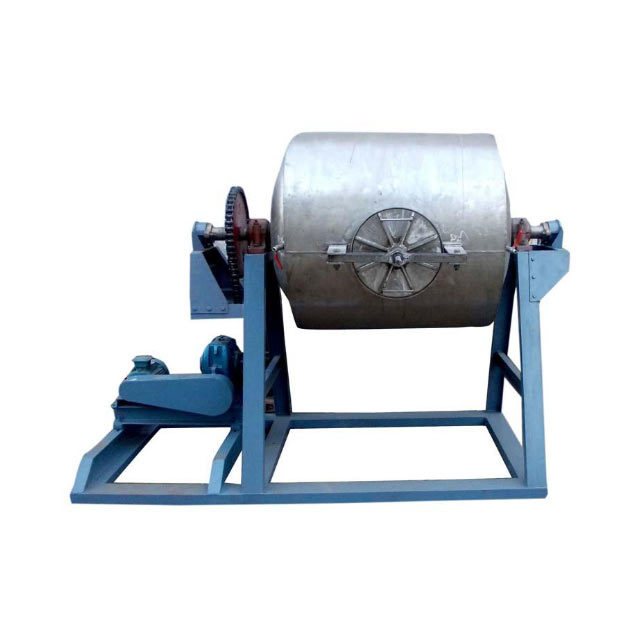

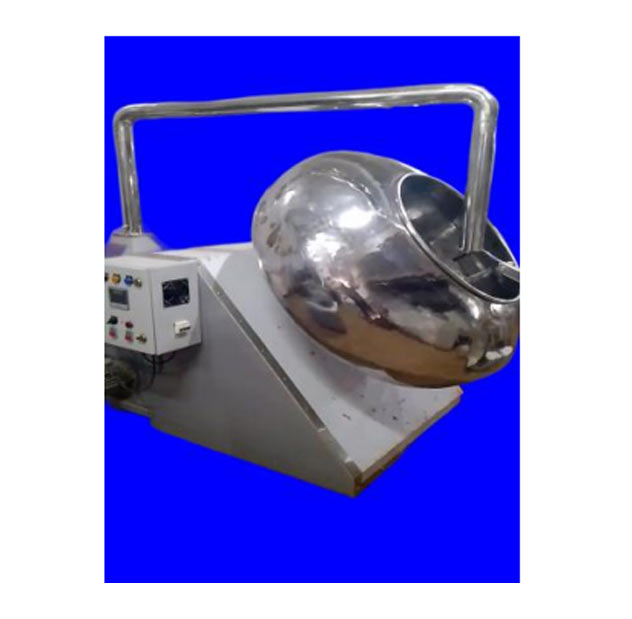

Coating Pan SS 304

  • Main Motor : 2 HP AC motor with gear box
  • SS Vessel Sixe : 4 fit
  • Capacity : 20 kg/ Batch
  • Machine Size : ( LxWxH)- 48”x48”’x54”
  • Weight : 500 kg

Oil Coal Heating Chamber 1 Lac Calorie

  • And ¼ HP Diesel Burner Italian Make Eco Flame
  • Diesel Consumption 5-8 Ltr./Hr
  • Oil Heating Temperature out 180 ºC and Control Penal

Bingo Cutter Machine SS 304 GNEW 100

  • Main Motor : 2 HP AC motor with AC Drive and gear box
  • Capacity : 100 kg/ Hr.
  • Machine Size : ( LxWxH)- 24”x36”’x48”
  • Weight : 200 kg

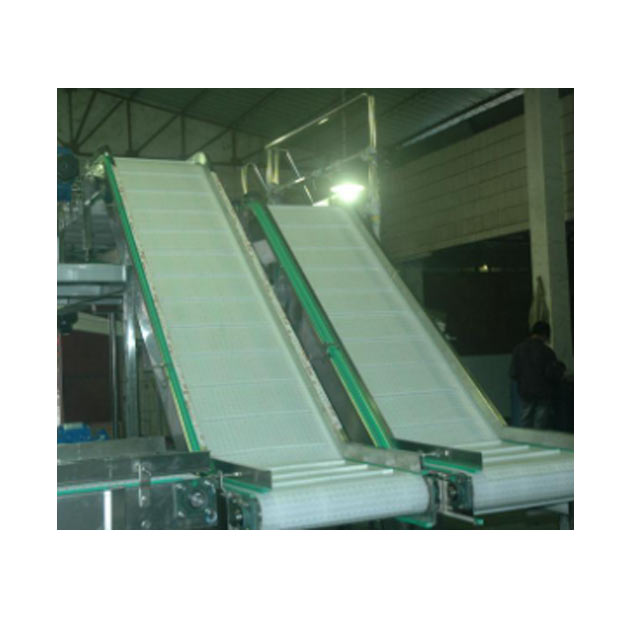

Lift Conveyor

  • Main Motor : 2 HP AC motor with gear head
  • Shifting Capacity : 100-600 kg/ Hr.
  • Machine Size : as per required
  • Weight : as per size

Energy Food Sattu Extruder GNEW 800

  • Main Motor : 100 HP AC motor
  • Hopper Feeder : 2 HP AC Drive
  • Cutter : 2 HP AC Drive
  • Capacity : 800 kg/ Hr.
  • Machine Size : ( LxWxH)- 60”x60”’x80”
  • Approx. Weight : 1800 kg

Double Extruder Frams Machine GNEW 150

  • Main Motor : 30 HP AC motor 2 nos with Extruder Gear Head
  • Hopper Mixture : 2 HP AC Motor with gear box
  • Cutter : 2 HP AC Drive
  • Capacity : 150 kg/ Hr.
  • Machine Size : ( LxWxH)- 12’x2.5’x5’
  • Approx. Weight : 3000 kg

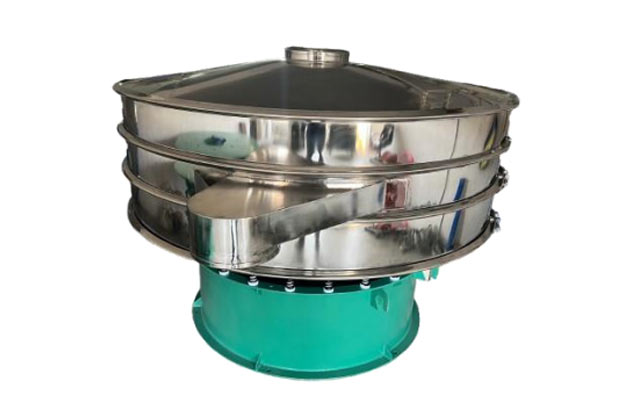

Klit Conveyor ( Sifting )

  • Main Motor : 2 HP AC motor with gear head
  • Shifting Capacity : 100-600 kg/ Hr.
  • Machine Size : as per required
  • Weight : as per size

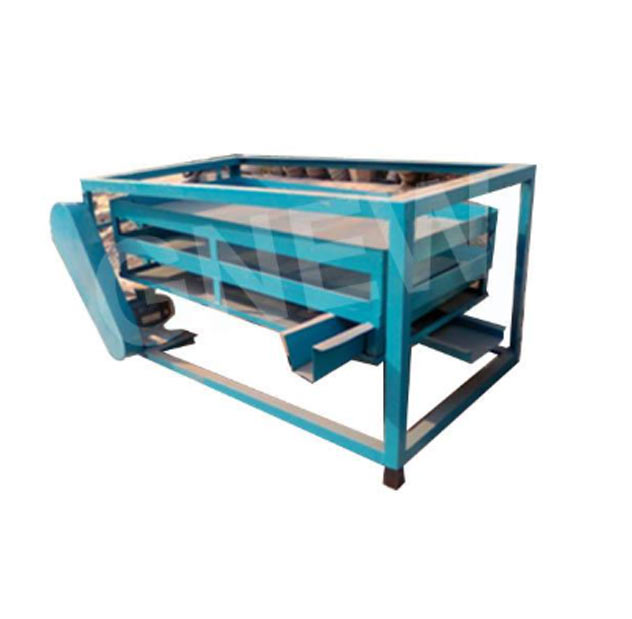

Double Dekker Grader

  • Main Motor : 1 HP AC motor
  • Double jail
  • Capacity : 100-400 kg/ Hr.
  • Machine Size : ( LxWxH)- 6’x 3.5’x3’
  • Approx. Weight : 400 kg

Gold Finger Cutter Machine GNEW 150

  • Main Motor : 1 HP AC motor with ac drive
  • Capacity : 150 kg/ Hr.
  • Machine Size : ( LxWxH)- 2.5’x 1.5’x2.5’
  • Approx. Weight : 150 kg

Food Dryer 3 Story Electric. GNEW 300

  • Main Drive : 2 HP AC Motor with Gear Box
  • Belt : 3 nos
  • Total Load : 25 kw
  • Capacity : 300 kg/ Hr.
  • Machine Size : ( LxWxH)- 15’x5’x6’
  • Approx. Weight : 2000 kg

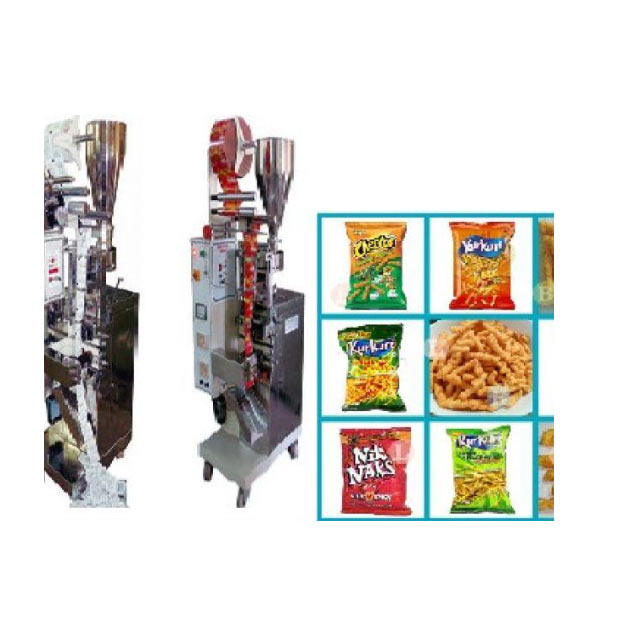

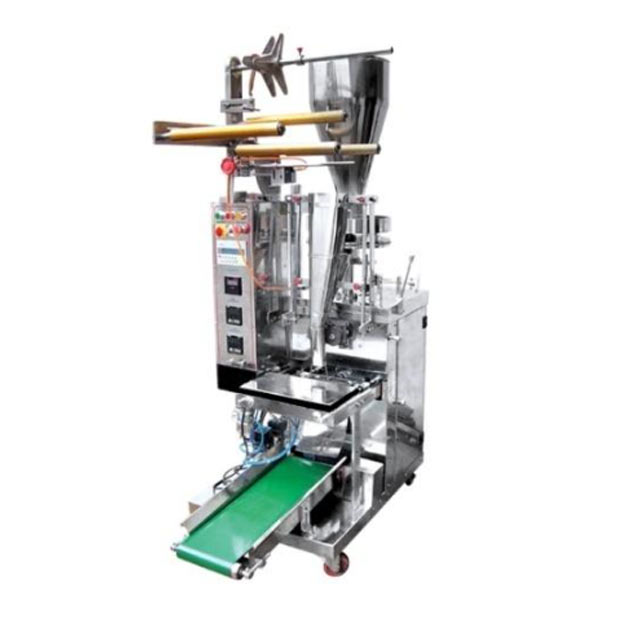

FFS Packing Machine

  • Electric Load 2 KW Cup Filler

SS 304 Cooker Machine GNEW 400

  • Power 5 HP AC Motor with Helical gear box
  • SS Cooker Drum with Steam
  • Capacity : 400 kg/ Batch
  • Machine Size : ( LxWxH)- 5’x 4’x5’
  • Approx. Weight : 1500 kg

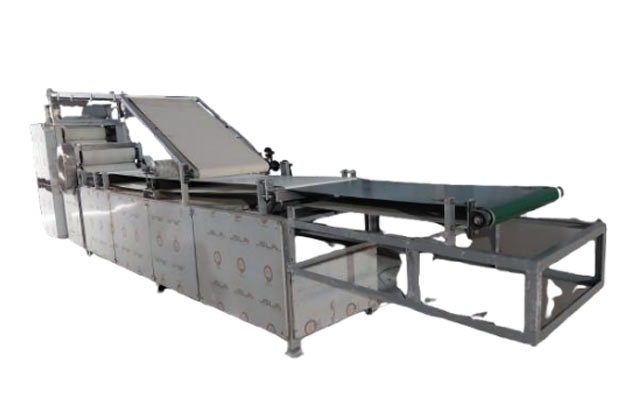

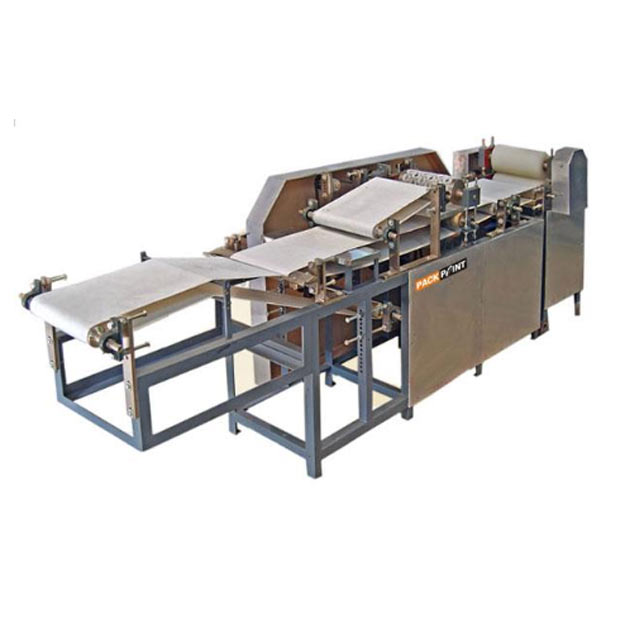

Papad Roller Sheter Machine GNEW 40

  • Main Motor : 2 HP DC motor
  • Tripple roller Sheet : total load 5 hp
  • Capacity : 40-100 kg/ Hr.
  • Machine Size : ( LxWxH)- 8’x 2.5’x5’
  • Approx. Weight : 800 kg

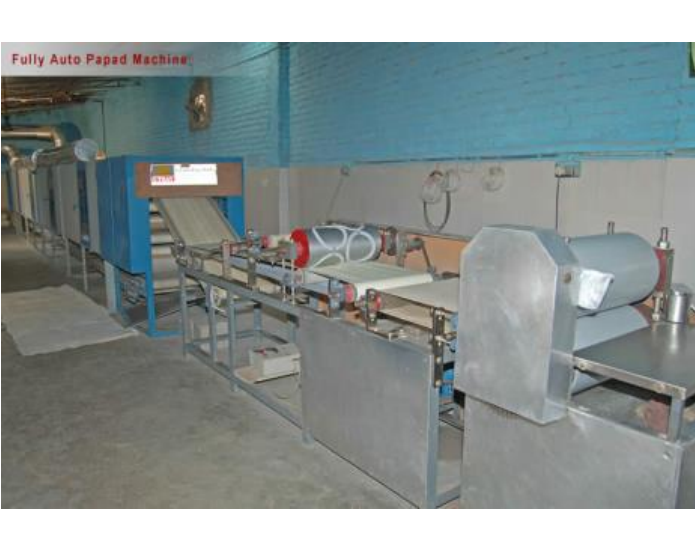

Papad on Line Plant GNEW 100

  • Main Motor : 2 HP DC motor
  • Tripple roller Sheet : total load 5 hp
  • Dryer : 3 HP AC Motor and 1 KW 12 Heaters
  • Capacity : 40-100 kg/ Hr.
  • Machine Size : ( LxWxH)- 30’x 3’x7’
  • Approx. Weight : 2500 kg

Continuous Kurkure and Frams Fryer GNEW 200

  • Total Load 25 KW Electric Heating System
  • Capacity : 200 kg/ Hr.
  • Machine Size : ( LxWxH)- 12’x 2.5’x4’
  • Approx. Weight : 1500 kg

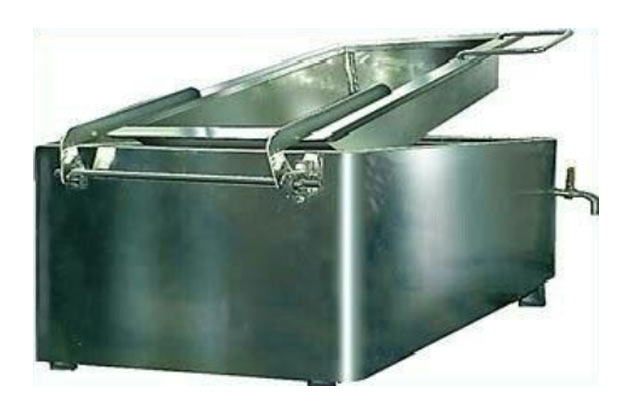

Continuous Namkeen Fryer Machine GNEW 100

  • Hating System diesel chamber heat exchanger
  • Capacity : 100-200 kg/ Hr. as per requirement
  • Machine Size : ( LxWxH)- 12’x 2.5’x4’
  • Approx. Weight : 1500 kg

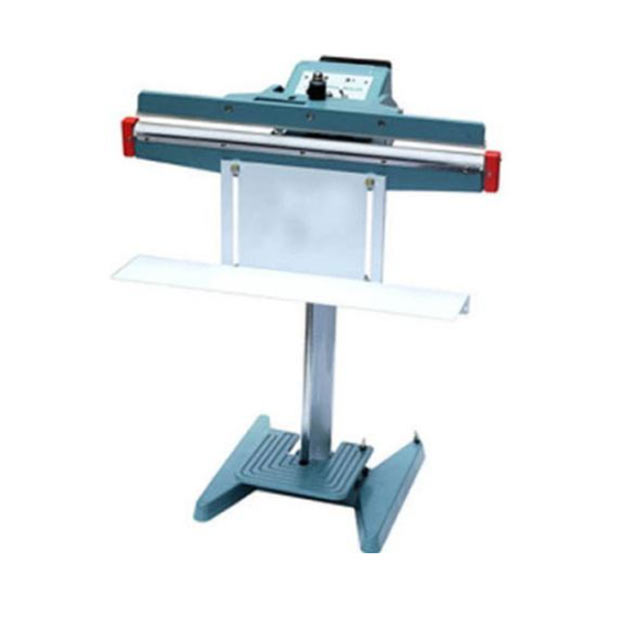

Manual Food Packing Machine

  • Electric Load ½ KW Heater

Peanut Peeling Machine GNEW 100

  • Main Motor : 1 HP DC motor
  • ½ HP Blower
  • Capacity : 100 kg/ Hr.
  • Machine Size : ( LxWxH)- 3’x 2.5’x4’
  • Approx. Weight : 300 kg

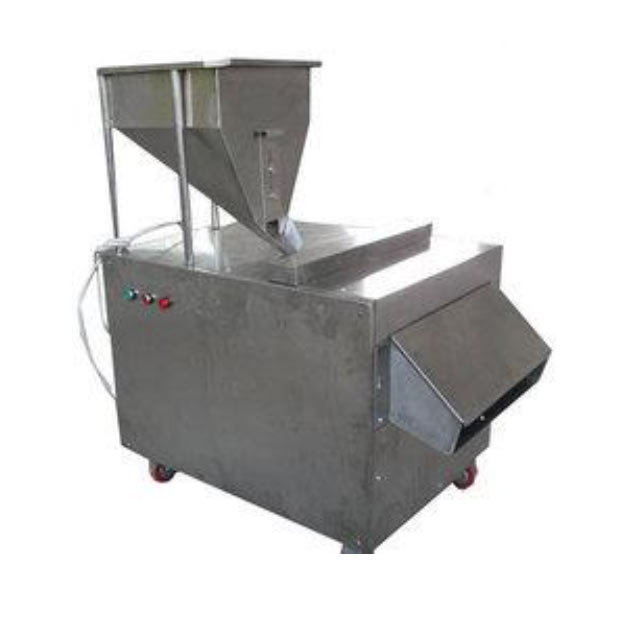

Peanut Two Pieces Cutting Machine GNEW 100

  • 1 HP AC Motor with gear box
  • Capacity : 100 kg/ Hr .
  • Machine Size : ( LxWxH)- 5’x 4’x5’
  • Approx. Weight : 500 kg

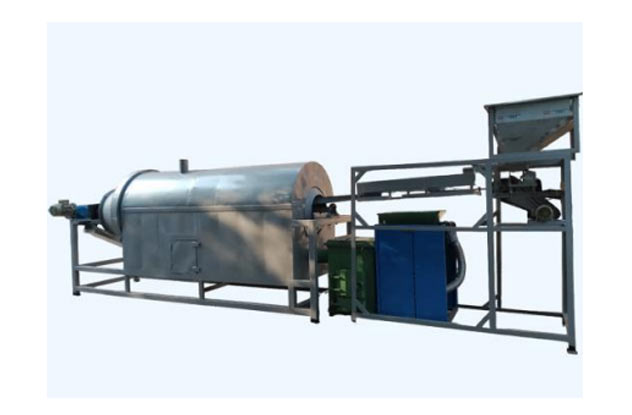

Peanut Peanut and Dry Fruits Roster GNEW 200

  • Drive : 2 HP AC Motor with Gear Box and AC Drive
  • SS 304 Rotary Cell and 1 KW 24 Heater
  • Total Load : 25 kw
  • Capacity : 100-400 kg/ Hr
  • Machine Size : ( LxWxH)- 16’x4’x6’
  • Approx. Weight : 1800 kg

Pasta Dryer Machine 5 Story GNEW 400

  • Main Drive : 5 HP AC Motor with Gear Box
  • Belt : 5 nos
  • Total Load : 36 kw
  • Capacity : 400 kg/ Hr.
  • Machine Size : ( LxWxH)- 20’x7’x12’
  • Approx. Weight : 4000 kg

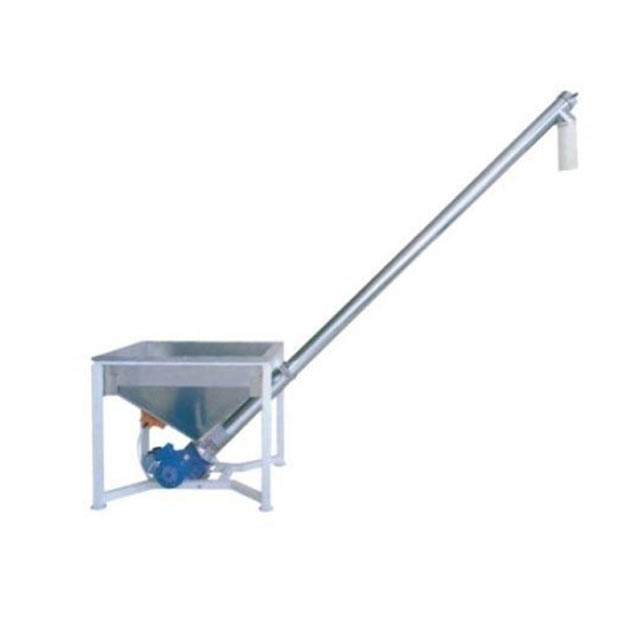

SS 304 Screw Conveyor

  • 1 HP AC Motor with Gear head
  • Capacity : 100-600 kg/ Hr.
  • Machine Size : as per required
  • Weight : as per size

Sawaiya Romali Machine GNEW 90

  • Main Motor : 7.5 HP AC motor Gear
  • Capacity : 90 kg/ Hr.
  • Machine Size : ( LxWxH)- 4’x4’x6’
  • Approx. Weight : 500 kg

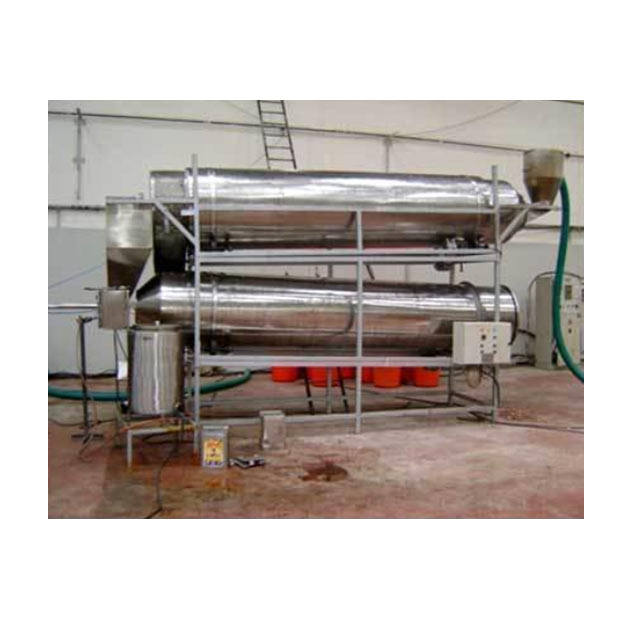

Roster and Masala Drum Double Dekker GNEW 100

  • 1 HP AC Motor 2 Nos With AC Drive
  • SS 304 Rotary Cell 2 nos
  • Total Electric Load 10 KW
  • Capacity : 100-400 kg/ Hr.
  • Machine Size : ( LxWxH)- 16’x3’x7.5’
  • Approx. Weight : 1200 kg

U Type Spice Roster Machine GNEW 150

  • Main motor : 3 HP with gear head
  • Total Load 9 KW
  • Capacity : 100-400 kg/ Hr.
  • Machine Size : ( LxWxH)- 5’x3’x7.5’
  • Approx. Weight : 1200 kg

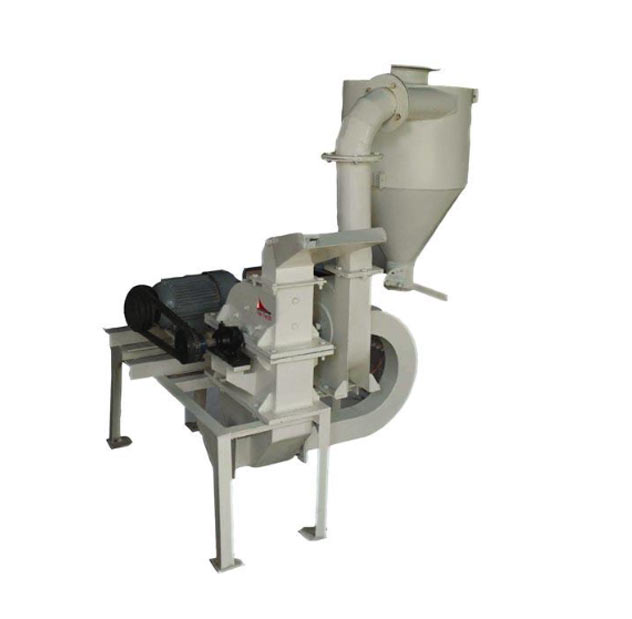

Spice Pilwarisor GNEW 200

  • Main motor : 15 HP
  • Capacity : 100-400 kg/ Hr.
  • Machine Size : ( LxWxH)- 3’x3’x6’
  • Approx. Weight : 1200 kg

Soya Nuggets Mixture GNEW 100

  • Main Motor : 5 HP AC motor with gear
  • Capacity : 100 kg/ Batch
  • Machine Size : ( LxWxH)- 5’x 3’x4’
  • Approx. Weight : 500 kg

Continuous Dryer Diesel 3 Story GNEW 500

  • Total Load : 5 HP and Diesel Consumption 3-4 Ltr/Hr
  • Capacity : 500 kg/ Hr
  • Machine Size : ( LxWxH)- 16’x5’x7.5’
  • Approx. Weight : 3000 kg

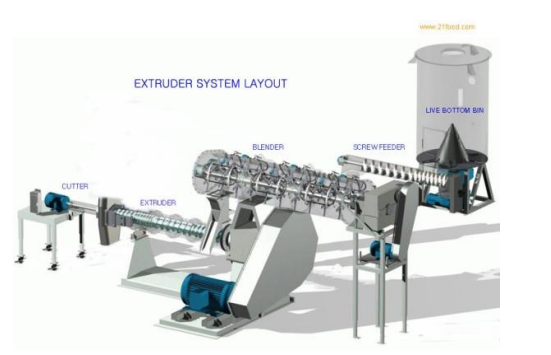

  • Soya Nuggets & Energy Food Extruder Layout

Soya Nuggets Machine GNEW 150

  • Main Motor : 40 HP AC motor
  • Hopper Mixture : 1 HP AC Motor with gear box
  • Hopper Feeder : 1 HP AC Motor with gear box
  • Cutter : 1 HP AC Drive
  • Capacity : 150 kg/ Hr.
  • Machine Size : ( LxWxH)- 50”x32”x60”
  • Approx. Weight : 1800 kg

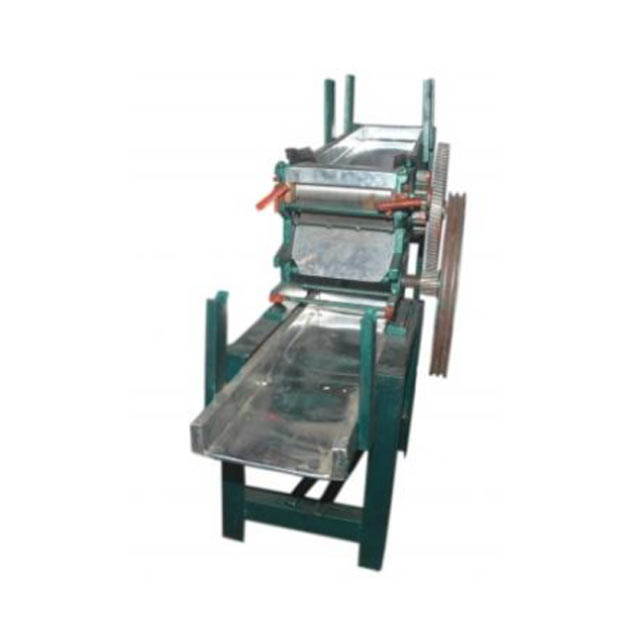

Noodle Machine GNEW 50

  • Main Motor : 2 HP AC motor
  • Capacity : 50 kg/ Hr.
  • Machine Size : ( LxWxH)- 5’x2’x4’
  • Approx. Weight : 300 kg

Noodle Machine Automatic GNEW 300

  • Main Motor : 5 HP AC motor
  • Capacity : 300 kg/ Hr.
  • 10” x 14 Rolla

Snack Food Machine GNEW 100

  • Main Motor : 25 HP AC motor
  • Hopper Mixture : 1 HP AC Motor with gear box
  • Cutter : 1 HP AC Drive
  • Capacity : 100 kg/ Hr.
  • Machine Size : ( LxWxH)- 48”x30”x55”
  • Approx. Weight : 1200 kg

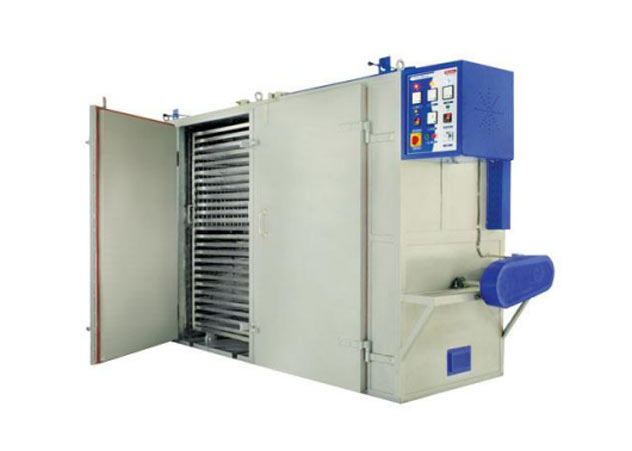

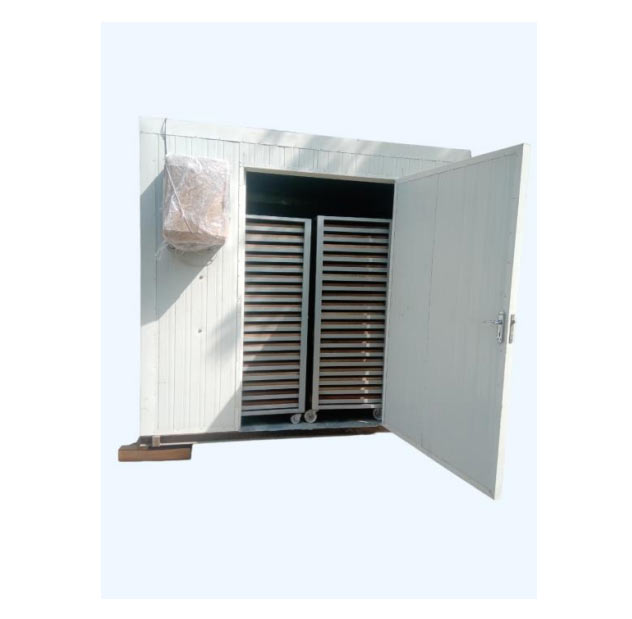

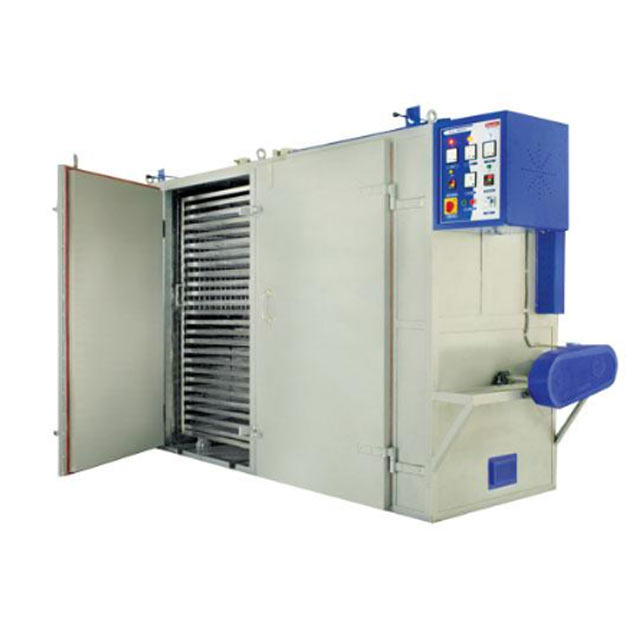

Tray Dryer GNEW 200

  • 1 HP AC Motor 2 nos
  • Total load 14 KW
  • Capacity : 200 kg/ Batch
  • Machine Size : ( LxWxH)- 72”x40”x60”
  • Approx. Weight : 1200 kg

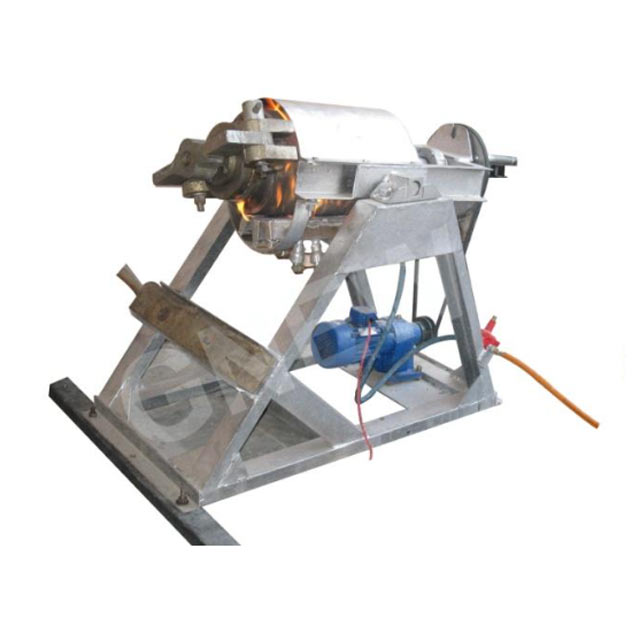

Wheat Puffing Machine

  • 1 HP AC Motor
  • Capacity : 6-7 kg/ Batch
  • Machine Size : ( LxWxH)- 4’x2’x4’
  • Approx. Weight : 400 kg

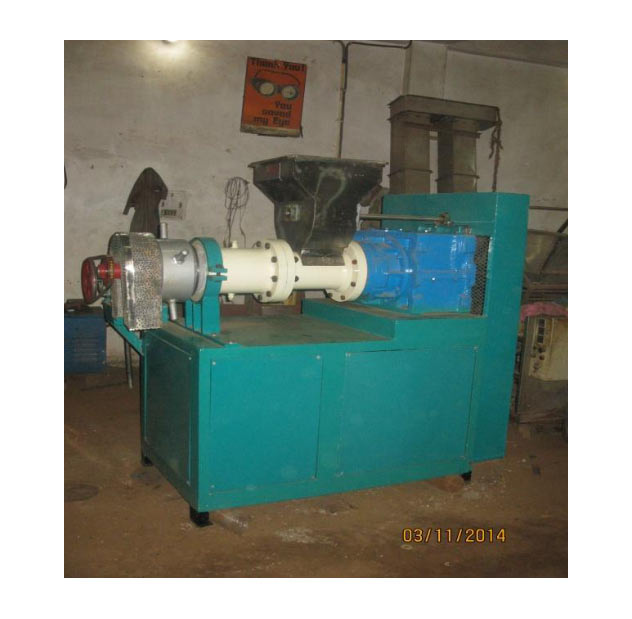

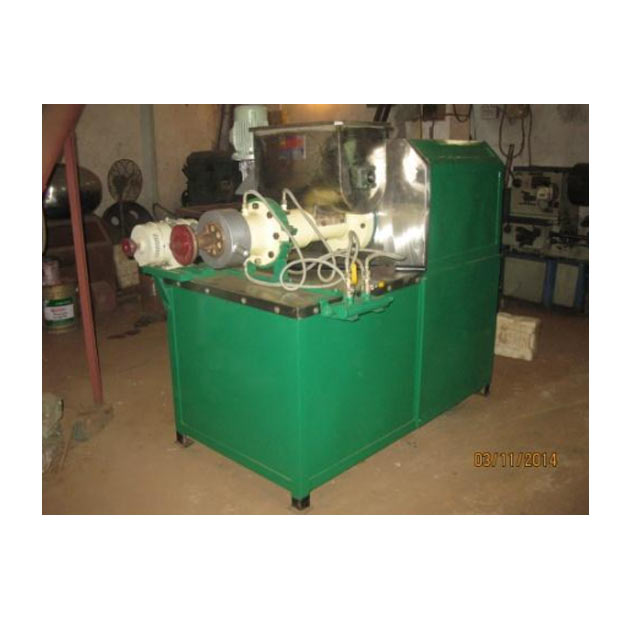

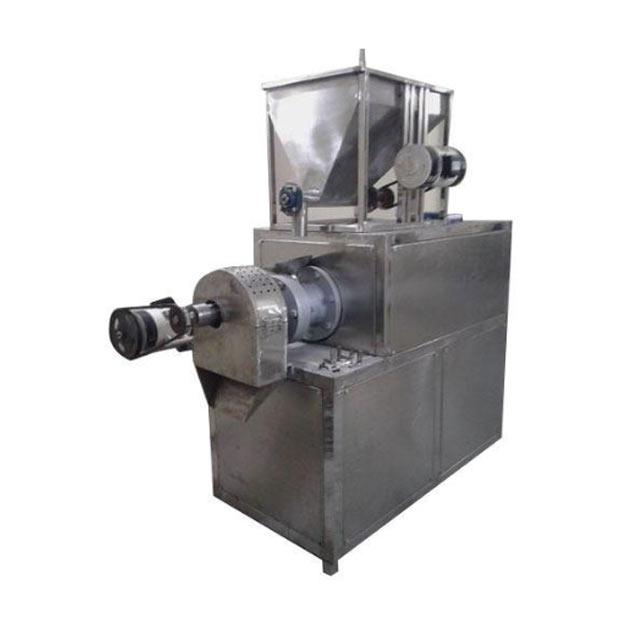

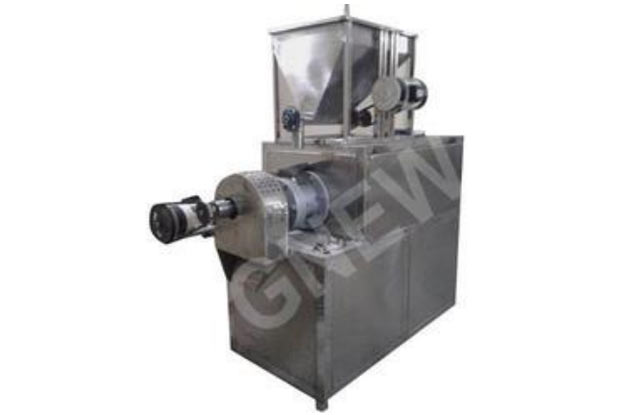

Sawaiya Bambino Machine GNEW 100

  • Main Motor : 15 HP AC motor with extruder Gear head
  • Hopper Mixture : 1 HP AC Motor with gear box
  • Cutter : 1 HP AC Drive
  • Capacity : 100 kg/ Hr.
  • Machine Size : ( LxWxH)- 6’x3’x4.5’
  • Approx. Weight : 1000 kg

Batch Type Roster ( LPG)

  • 1 HP AC MOTOR WITH GEAR BOX AND LPG BURNER
  • LPG CONSUPTION 2 KG/HR
  • SIZE 5 Ft. L x 5 Ft. H x 4 Ft. W
  • TEMPERATURE 0 To 250ºC

Coating Pan With Hot Air

  • 3 HP AC Motor
  • Size 36” Dia

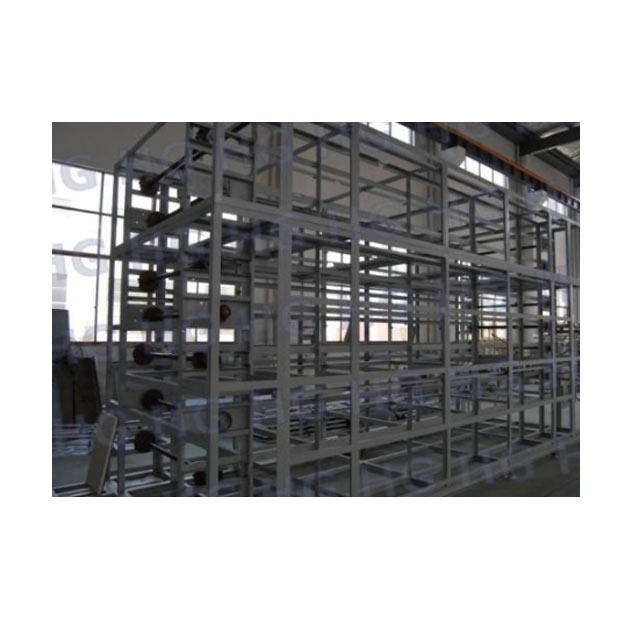

Macaroni Pasta Dry Chamber Machine

  • 1 KW- 6 HEATER
  • EXSASE FAN 6 NOS AND WOODEN TRAY 80 NOS TRAY
  • TRAY SIZE 24” W x40” L x 2” DEEP
  • CHAMBER SIZE – 8’W x 9’DEEP X7.5’ H

Tray Dryer GNEW 100

  • 1 HP AC Motor
  • Total load 7 KW
  • Capacity : 100 kg/ Batch
  • Machine Size : ( LxWxH)- 66”x40”x60”
  • Tray No. 12

Tray Dryer GNEW 400

  • 1 HP AC Motor with 2 Blower
  • Total load 30 KW
  • Capacity : 400 kg/ Batch
  • Machine Size : ( LxWxH)- 80”x108”x40”
  • Tray No. 40

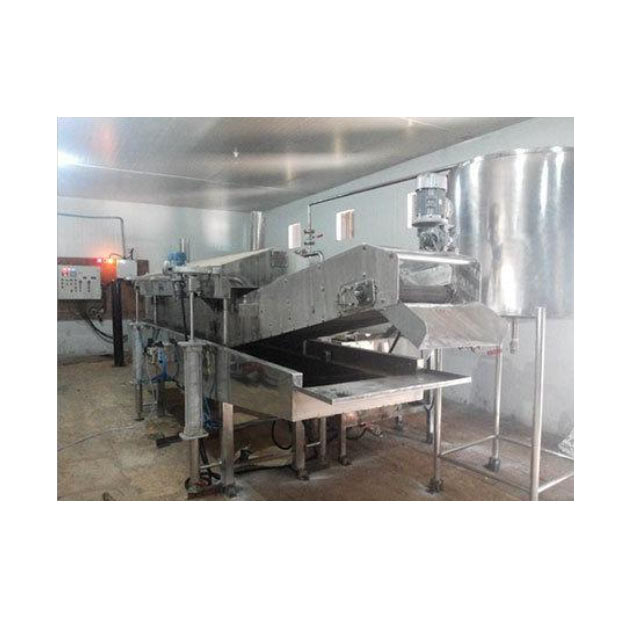

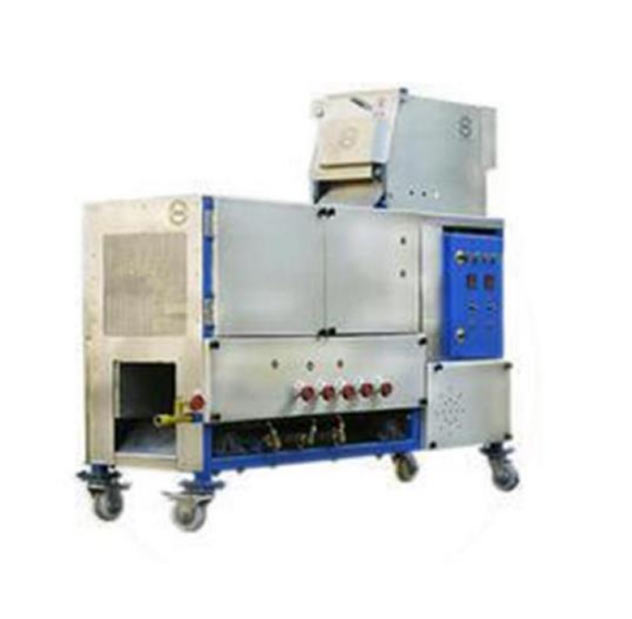

Chapati Machine GNEW500

  • Tripple Roller Sheeter : Total Load 5 HP
  • Machine Size : 8’X2.5’X5’
  • Approx Weight : 800 kg

Sand Multi Roster Machine

  • 2 Hp Ac Motor With Gear Box And Heating System
  • With Lpg & Deseal And Wood Pannel Fire Burnal
  • 2 Lakh Kilocalories
  • 0-400 Degree
  • Roster Size Lxwxh: 15 X 3.5 X 5.5 Feet

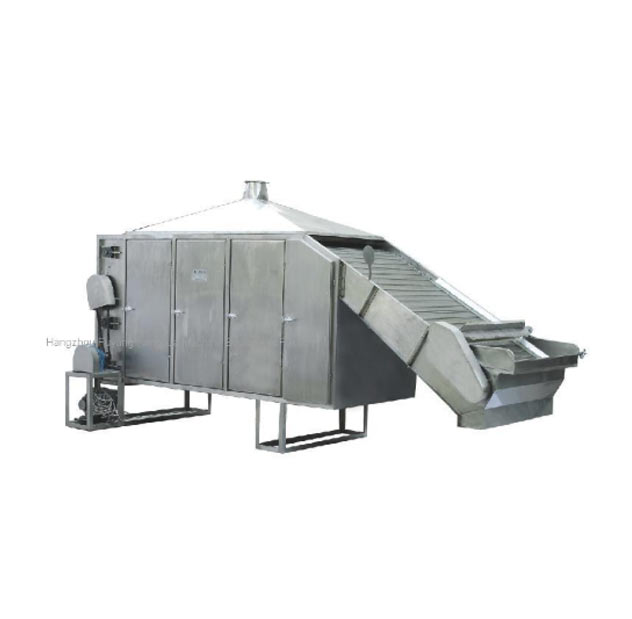

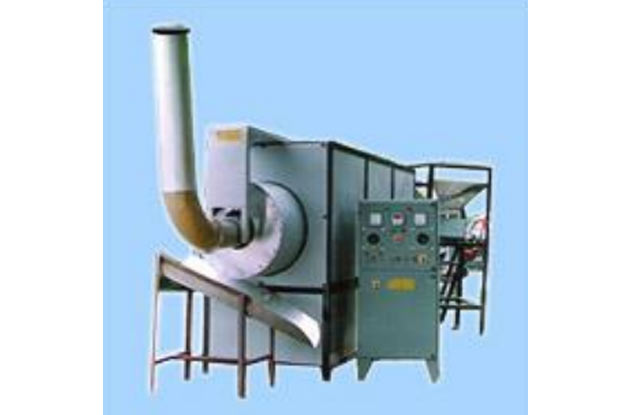

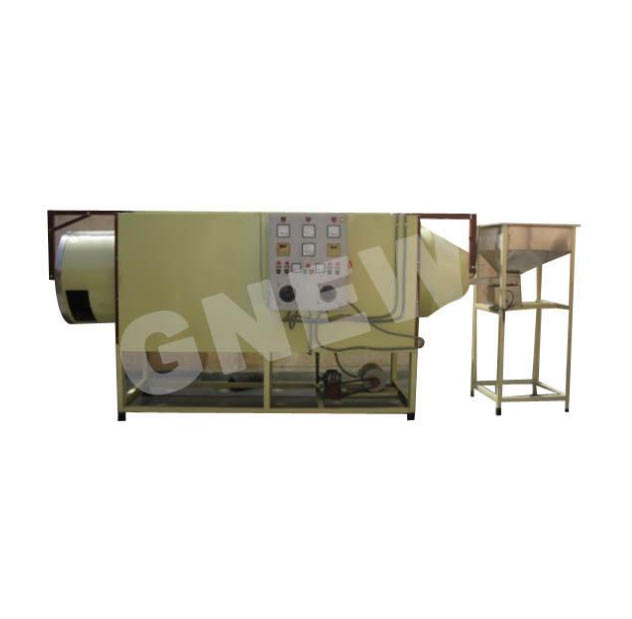

Continuous Roster Diesel GNEW 100

  • Cell Drive 2 HP AC Motor
  • Total Load 2kw With Diesel Burner
  • App. Machine Size: 18’ x 4.5’ x 5’
  • Approx Weight: 1800 KG

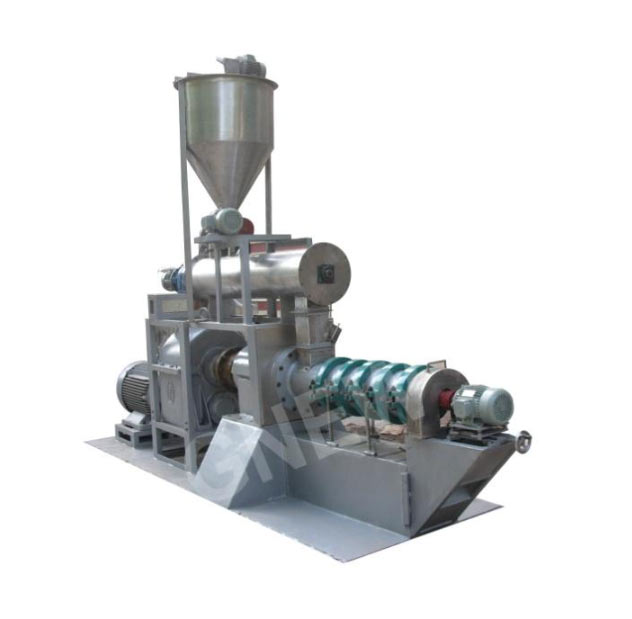

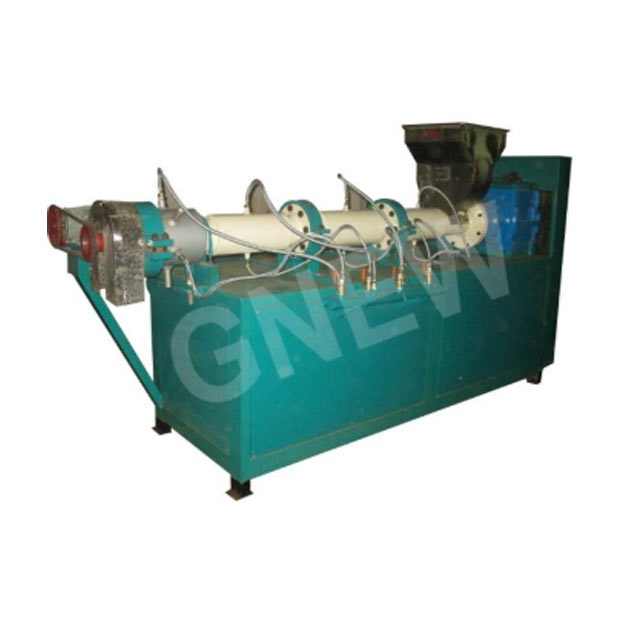

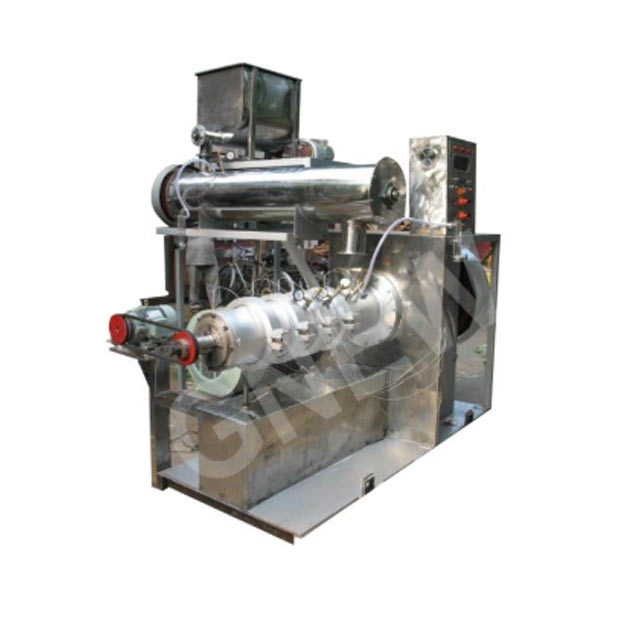

Soya Nuggets Machine GNEW 400

  • Main Motor : 75 HP AC motor
  • Hopper Mixture : 2 HP AC Motor with gear box
  • Hopper Mixture : 2 HP AC Motor with gear box
  • Cutter : 1 HP AC Drive
  • Capacity : 400 kg/ Hr.
  • Machine Size : ( LxWxH)- 60”x60”x60”
  • Approx. Weight : 2500 kg

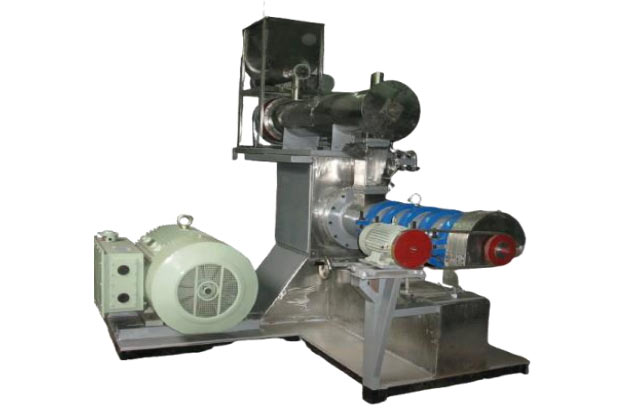

Soya Nuggets Machine GNEW 1000

  • Soya Nuggets Machine GNEW 1000
  • Main Motor : 215 HP AC motor
  • Hopper Mixture : 2 HP AC Motor with gear box
  • Hopper Mixture : 2 HP AC Motor with gear box
  • Cutter : 1 HP AC Drive
  • Capacity : 1000 kg/ Hr.
  • Machine Size : ( LxWxH)- 72”x60”x60”
  • Approx. Weight : 3000 kg

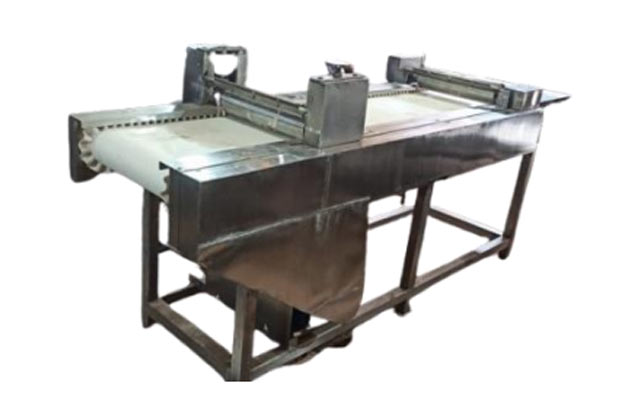

Aam Papad Cutting Double Blade

  • 2 HP AC Motor With
  • Double Counter Puly
  • Size: 48” L X 22” W X 32’’ H

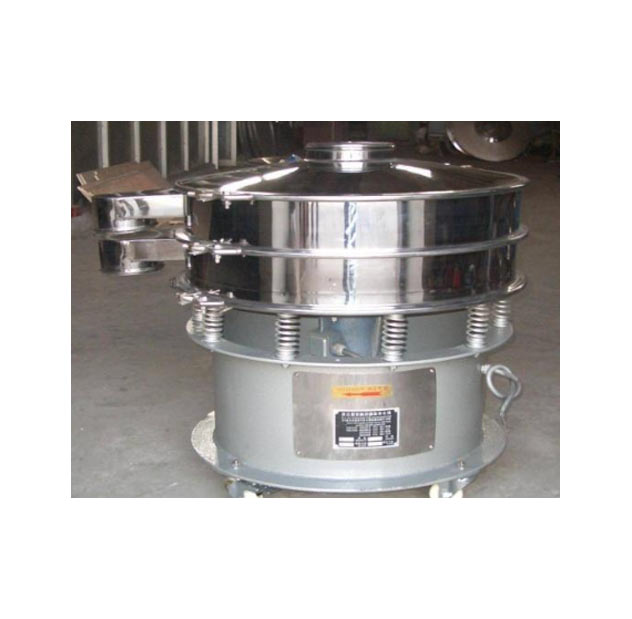

Vibro Shifter 72’’

  • 2 HP AC motor
  • 72” Dia

Vibro Shifter 30’’

  • 2 HP AC motor
  • 30” Dia

Rice Poha Machine

  • 5 HP AC MOTOR-1 NO.
  • WITH PRESSURE SHAFT AND PRESSURE ROLLER
  • SIZE: 42”X 42”

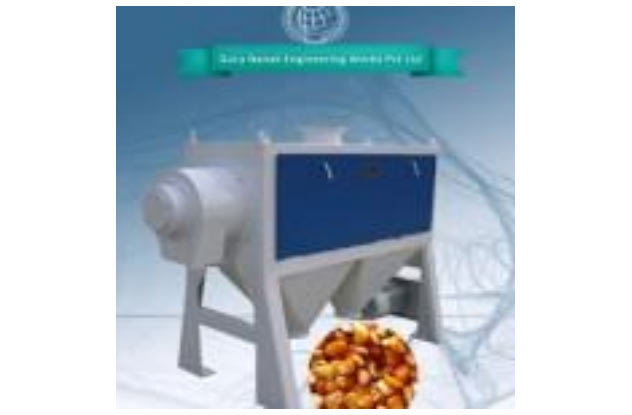

Corn Pilling Grinder GNEW 400

  • Main Drive 15 Hp AC Motor
  • Machine Size: 5’x3’x6’ Feet
  • Weight : 700 kg

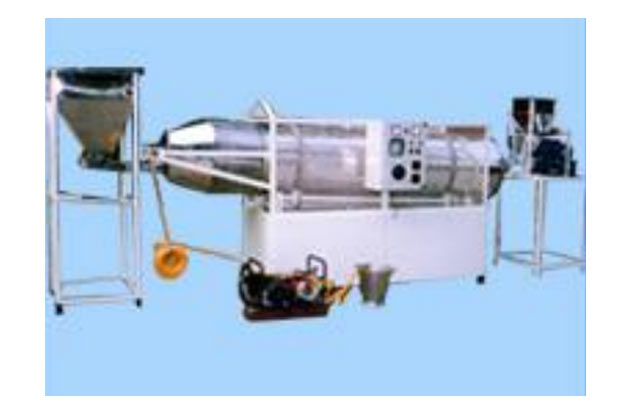

Continous Caoating Drum GNEW 100

  • Total Load 3 hp
  • Machine Size: (LxWxH) 14’ x 3’ x 5’

BATCH FRYER RIGHT ANGLE 50 LTR

  • Total Load 18 kw
  • Temperature 0 To 250 Degree
  • Machine Approx Size – 5 Ft. Length 4 Ft. Width 4.5 Ft. Height
  • Weight: 350 Kg
